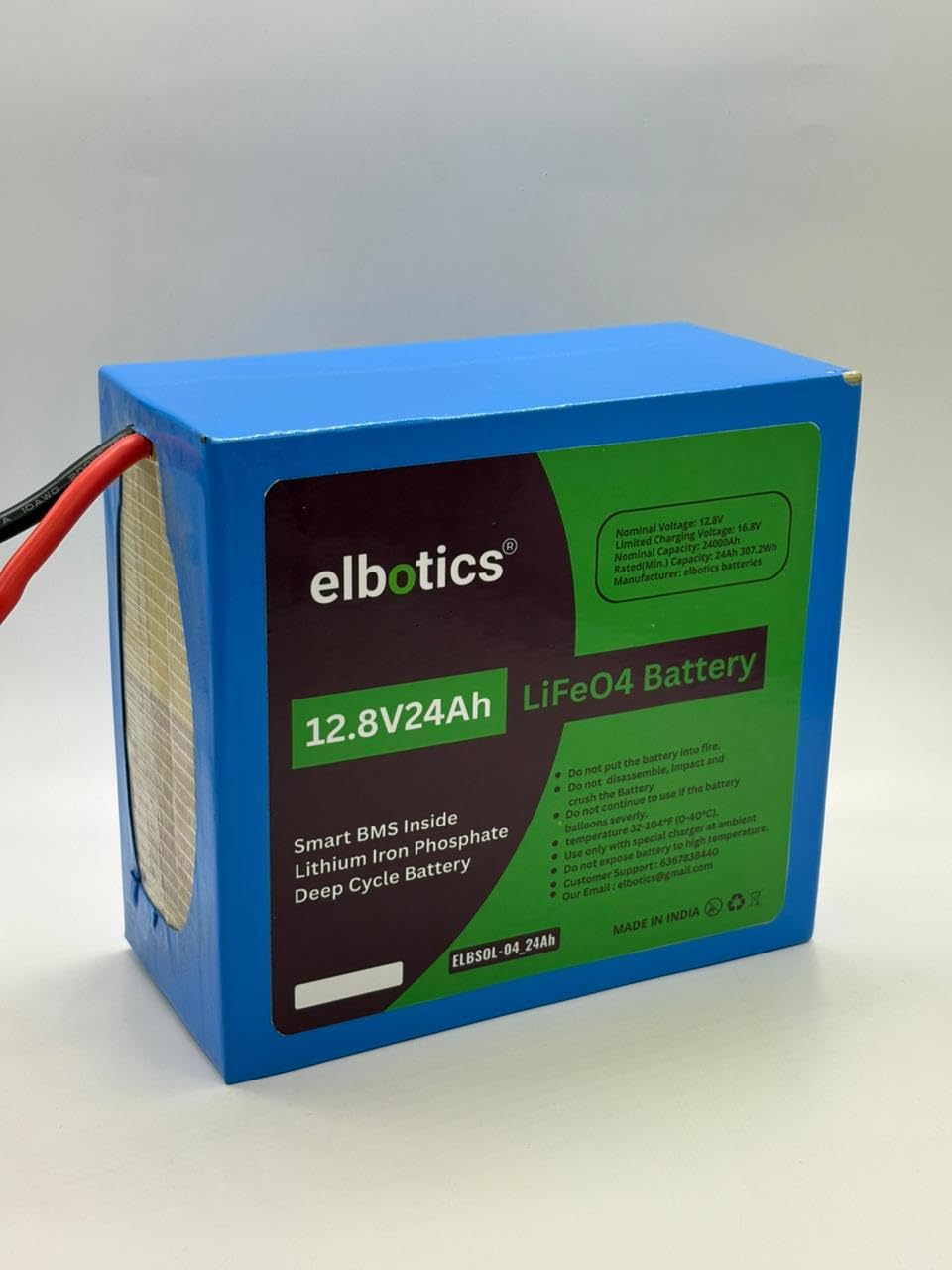

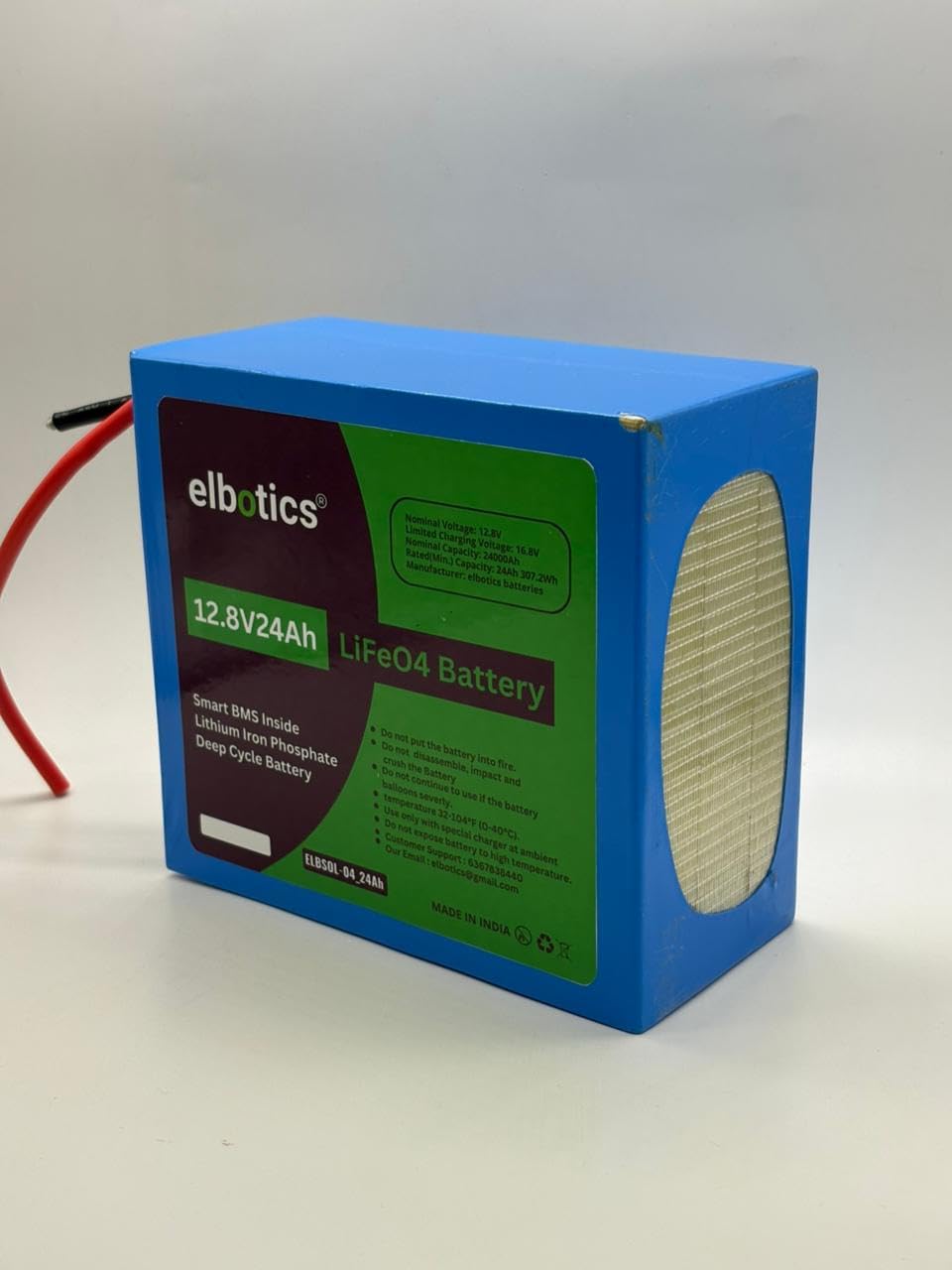

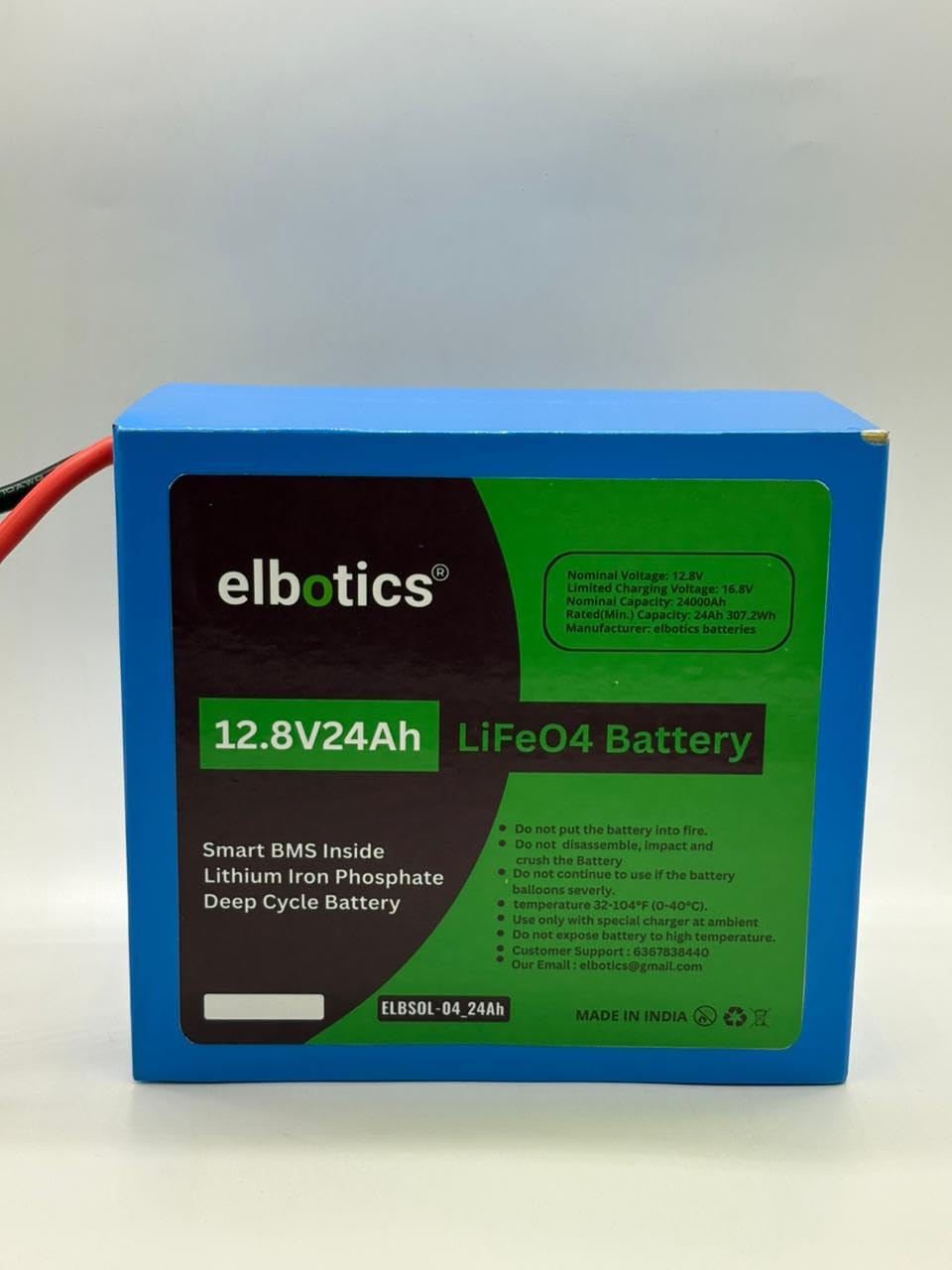

The ELBOTICS 12.8V 24Ah LiFePO4 Rechargeable Battery with Smart BMS is a high-capacity, lightweight and maintenance-free energy solution designed for solar systems, inverters, UPS backup, emergency power, portable power equipment, camping systems, CCTV installations, communication devices and compatible 12V applications.
Built using reliable Lithium Iron Phosphate cells, this battery delivers a nominal 12.8V output, a capacity of 24Ah, and approximately 307.2Wh of stored energy. Its stable discharge characteristics help provide consistent power throughout the operating cycle, making it suitable for applications that require dependable backup and long runtime.
The integrated 4S 10A Smart Battery Management System helps protect the battery against overcharging, over-discharging, overcurrent, under-voltage and short circuits. Compared with many conventional lead-acid batteries, this LiFePO4 battery offers lower weight, longer cycle life, higher energy efficiency and maintenance-free operation.
Key Features
High-Capacity 24Ah Power
The large 24Ah capacity provides approximately 307.2Wh of energy, offering extended backup time for compatible solar systems, inverters, UPS units and portable electronic equipment.
Long-Life LiFePO4 Technology
Designed to provide 2000+ charge-discharge cycles at recommended depth of discharge and operating conditions, offering significantly longer service potential than many conventional lead-acid batteries.
Built-In 4S 10A Smart BMS
The integrated Battery Management System helps protect against overcharging, over-discharging, overcurrent, under-voltage and short circuits during normal operation.
Stable 12.8V Output
LiFePO4 chemistry provides a relatively flat discharge curve, helping connected equipment receive consistent voltage until the battery approaches its discharge limit.
Lightweight and Compact Design
Weighing approximately 2.6kg, the battery is considerably lighter than many lead-acid alternatives with comparable usable capacity. Its compact design also helps save installation space.
High Energy Efficiency
The battery is designed for efficient charging and discharging, reducing energy loss and improving overall system performance under recommended conditions.
No Memory Effect
The battery can be recharged without requiring a complete discharge, making everyday charging more convenient.
Maintenance-Free Operation
The sealed LiFePO4 construction requires no water refilling, acid handling or regular electrolyte maintenance.
3-Year Warranty
Backed by a 3-year ELBOTICS warranty, subject to the applicable warranty terms and recommended operating conditions.
Applications
Solar Energy Systems
Suitable for compatible residential, commercial and portable solar systems using a correctly configured LiFePO4 solar charge controller.
Solar Inverters
Provides dependable energy storage for compatible solar inverters requiring a 12V-class lithium battery with matching current and charging specifications.
UPS Backup
Can support compatible UPS systems, routers, CCTV equipment, communication devices and backup electronics during power interruptions.
Emergency Power
Suitable for emergency lights, portable backup systems, alarm equipment and critical low-power devices requiring dependable rechargeable energy.
Portable Power Applications
Ideal for camping systems, portable workstations, field equipment, lighting and off-grid electronic devices.
CCTV and Security Systems
Provides backup power for compatible CCTV cameras, DVR systems, access-control equipment and security installations.
Communication Equipment
Can support compatible routers, radios, monitoring systems and field communication equipment.
Lead-Acid Battery Replacement
May replace a similarly rated 12V lead-acid battery only when the voltage range, charger profile, terminals, dimensions and current requirements are compatible.
Why Choose ELBOTICS
ELBOTICS develops rechargeable battery solutions for solar systems, backup power, portable electronics, security equipment and professional energy applications. Each battery is built using selected LiFePO4 cells and battery-management technology to provide stable voltage, dependable runtime and enhanced operational protection.
Whether replacing a compatible lead-acid battery or building a new power-storage system, ELBOTICS LiFePO4 batteries offer a lightweight, rechargeable and maintenance-free solution for demanding applications.
Compatibility Notice
Before purchasing or installing this battery, verify:
- Required operating voltage
- Maximum charging voltage
- Continuous and peak current requirements
- BMS current limit
- Terminal or connector type
- Terminal polarity
- Battery dimensions
- Charger compatibility
- Equipment compatibility with LiFePO4 chemistry
The built-in BMS is rated at 10A, so the connected equipment should not require more continuous or peak current than the battery can safely provide.
Charging Instructions
- Use only a regulated charger designed for 12.8V LiFePO4 batteries.
- Follow the charging voltage printed on the final battery label.
- Do not use an unregulated power adapter as a charger.
- For solar charging, use a LiFePO4-compatible solar charge controller.
- Verify charger polarity before connecting.
- Charge in a dry and well-ventilated location.
- Disconnect the charger after charging is complete.
- Stop charging if the battery becomes unusually hot, swollen or physically damaged.
Series and Parallel Connection Notice
Series or parallel expansion should only be performed if approved for this exact battery model and BMS.
- Use batteries with the same voltage, capacity, age and state of charge.
- Do not mix old and new batteries.
- Do not mix LiFePO4 batteries with lead-acid or other battery chemistries.
- Use correctly rated cables, fuses and connectors.
- Do not exceed the BMS current limit.
- High-current installations should be completed by a qualified technician.
Safety Instructions
- Do not puncture, crush, disassemble or modify the battery.
- Do not short-circuit the terminals.
- Keep away from fire, excessive heat, water and direct sunlight.
- Do not exceed the supported charging or discharge current.
- Do not use or charge the battery if it is swollen, leaking or physically damaged.
- Install securely to protect against vibration and impact.
- Store in a cool and dry location when not in use.
- Disconnect from equipment during extended storage.
- Keep out of reach of children.
- Dispose of used batteries through an authorised lithium-battery recycling facility.
Package Includes
1 × ELBOTICS 12.8V 24Ah LiFePO4 Rechargeable Battery with Built-in Smart BMS
Why Buy This Battery?
The ELBOTICS 12.8V 24Ah LiFePO4 Rechargeable Battery is a strong choice for users who need reliable, lightweight and maintenance-free power for solar systems, inverters, UPS backup, emergency equipment, CCTV, camping and portable electronics.
Its 24Ah capacity, 307.2Wh energy, 2000+ cycle design, integrated 10A Smart BMS and 3-year warranty provide dependable long-term value for compatible applications. Always confirm the required voltage, charger profile, current demand, terminal arrangement, polarity and dimensions before installation.
