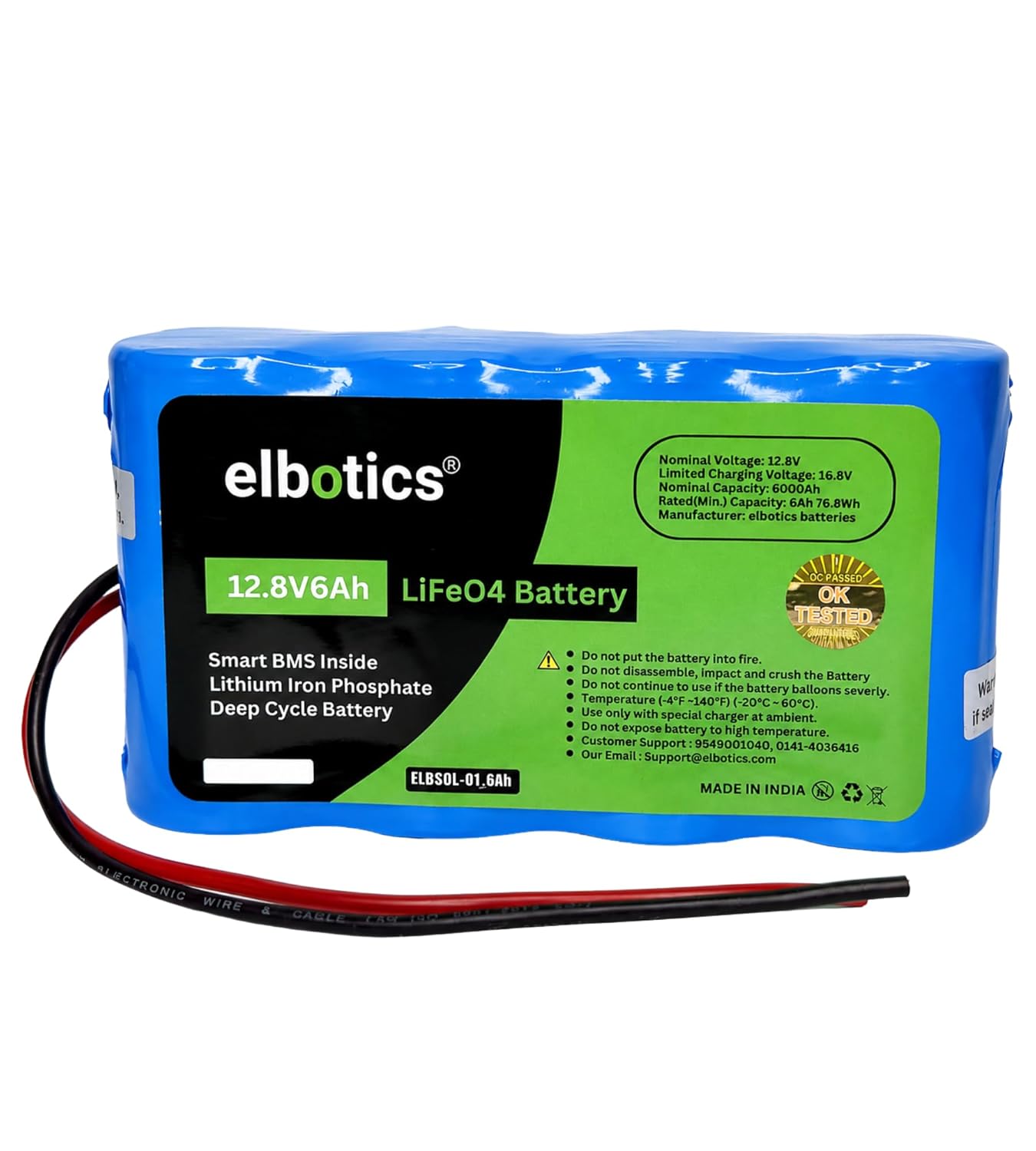

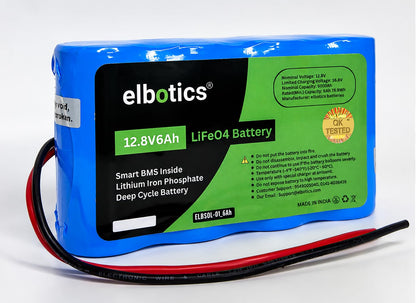

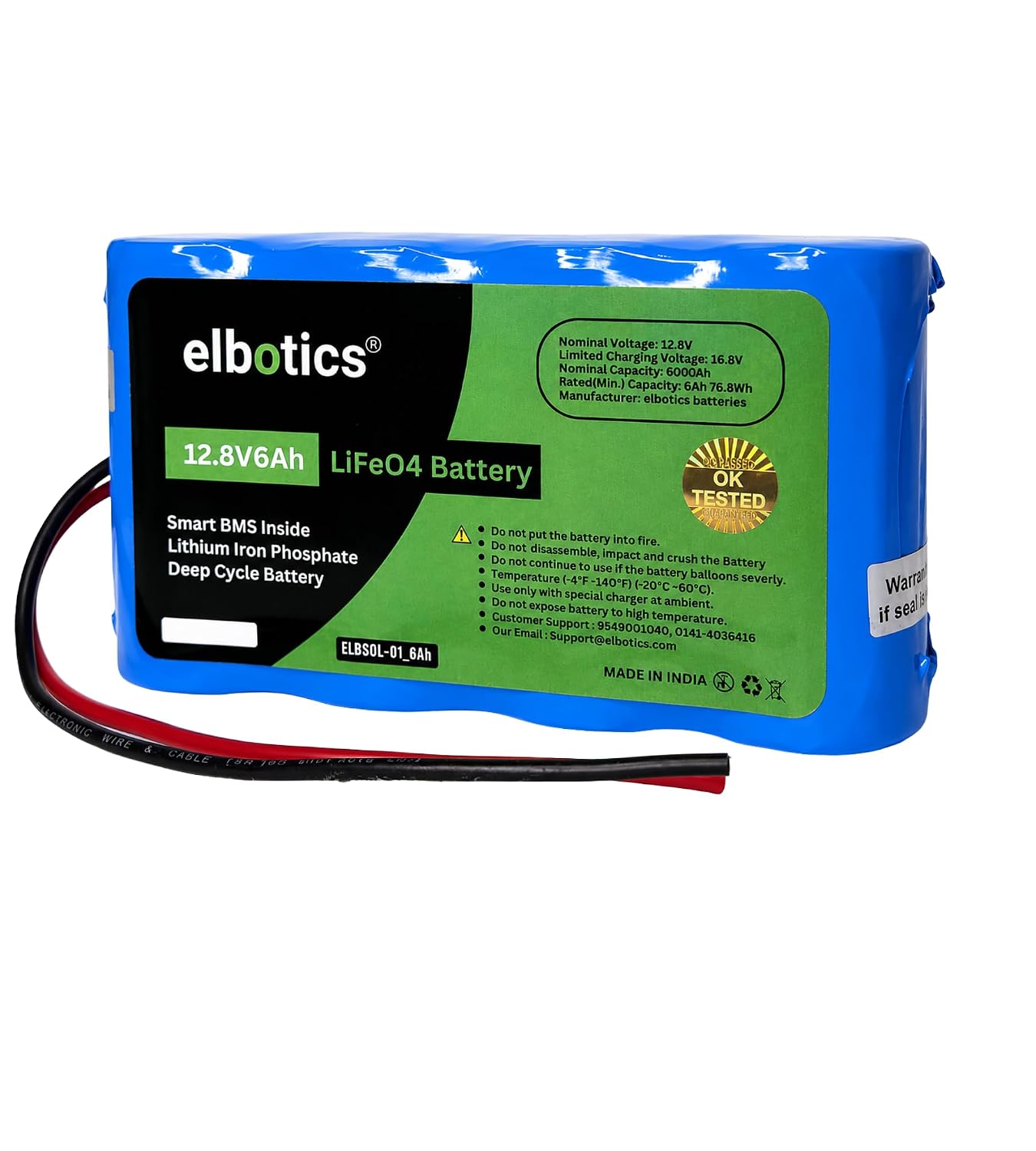

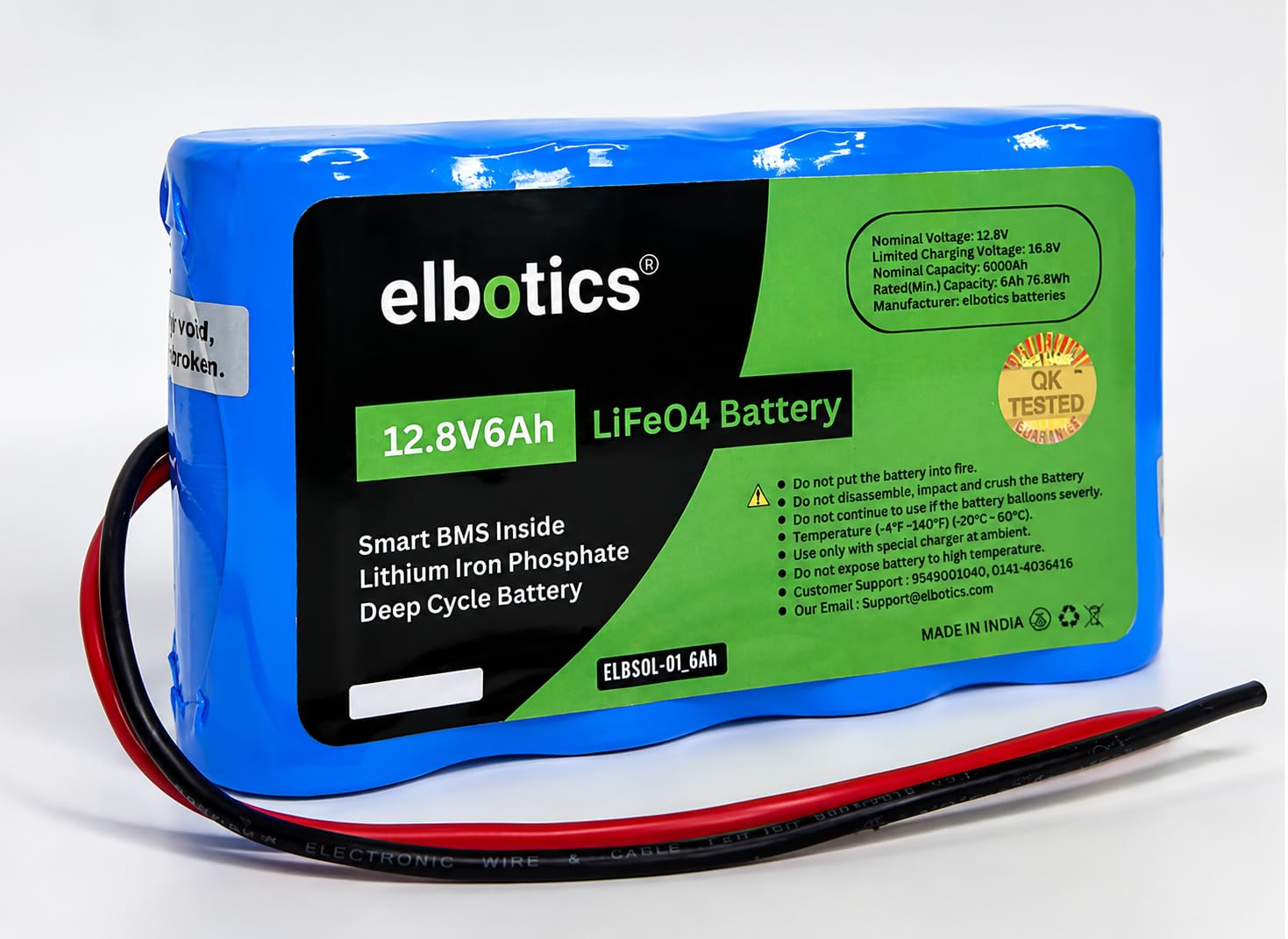

ELBOTICS 12.8V 6Ah LiFePO4 Battery – 76.8Wh with Built-in Smart BMS
Power your compatible solar, backup and electronics projects with the ELBOTICS 12.8V 6Ah Lithium Iron Phosphate (LiFePO4) Battery.
Delivering 76.8Wh of nominal energy, this rechargeable deep-cycle battery combines LiFePO4 chemistry with an integrated Battery Management System (BMS) for dependable charging and discharging protection.
Designed for 2000+ charge-discharge cycles, it provides a lightweight alternative to conventional lead-acid batteries for compatible low-voltage power applications.
🔋 6Ah / 6000mAh Capacity
With a rated capacity of 6Ah (6000mAh), the battery provides:
12.8V × 6Ah = 76.8Wh
This makes it suitable for compact power systems where rechargeable energy storage, low weight and repeated cycling are important.
⚡ LiFePO4 Battery Technology
Unlike conventional lithium-ion chemistries, this battery uses Lithium Iron Phosphate (LiFePO4) chemistry.
LiFePO4 technology is particularly well suited to applications requiring repeated charge and discharge cycles and stable battery performance.
Battery Specifications
Nominal Voltage: 12.8V
Capacity: 6Ah / 6000mAh
Nominal Energy: 76.8Wh
Chemistry: LiFePO4
Rechargeable: Yes
Cycle Life: 2000+ cycles
Approx. Weight: 600–605g
🛡️ Built-in Smart BMS Protection
The integrated Battery Management System helps protect the battery against common abnormal electrical conditions.
According to the supplied product specifications, BMS protection includes:
- Over-charge protection
- Over-discharge protection
- Over-current protection
- Short-circuit protection
The BMS helps manage battery operation, but the battery should still be used with appropriately rated equipment and a LiFePO4-compatible charging system.
🔄 2000+ Cycle Deep-Cycle Design
The battery is designed to provide 2000+ charge-discharge cycles, making it suitable for applications that require frequent cycling.
The supplied specification indicates operation at approximately 70–80% Depth of Discharge (DOD) for long-term use.
Actual cycle life will vary depending on charging voltage, discharge current, operating temperature, depth of discharge and storage conditions.
☀️ Suitable for Solar & Backup Applications
The ELBOTICS 12.8V 6Ah battery can be used in appropriately specified systems including:
Solar energy projects
Small backup power systems
Compatible inverter applications
Energy storage projects
Robotics
Portable electronics
DIY electronics
Embedded systems and prototypes
Always verify the equipment's required voltage, current, connector/terminal arrangement and charging requirements before installation.
🪶 Lightweight Design
At approximately 600–605 grams, the battery offers substantial energy storage without the weight associated with many traditional lead-acid battery solutions.
This makes it particularly useful for portable projects, robotics and installations where reducing overall system weight is beneficial.
Technical Specifications
| Feature | Specification |
|---|---|
| Brand | ELBOTICS |
| Battery Type | Rechargeable |
| Chemistry | Lithium Iron Phosphate (LiFePO4) |
| Nominal Voltage | 12.8V DC |
| Capacity | 6Ah |
| Capacity in mAh | 6000mAh |
| Nominal Energy | 76.8Wh |
| BMS | Built-in |
| Cycle Life | 2000+ cycles |
| Depth of Discharge | 70–80% stated |
| Approx. Weight | 600–605g |
| Quantity | 1 Battery |
| Warranty | 2 Years |
Applications
The battery is suitable for compatible low-voltage electrical and energy-storage applications such as solar systems, backup power, robotics, electronics projects and selected inverter systems.
For inverter applications in particular, confirm that the inverter's input voltage and current requirements are within the battery/BMS specifications. A 6Ah battery is relatively small for many conventional household inverter loads.
Charging & Battery Care
Use only a charger specifically compatible with a 4S LiFePO4 battery and the manufacturer's specified charging parameters.
Do not use an incompatible lead-acid or lithium-ion charger unless its charging profile is explicitly suitable for this LiFePO4 battery.
Avoid short-circuiting the terminals, reverse polarity, crushing, puncturing, dismantling or exposing the battery to excessive heat or fire.
For storage, disconnect the battery from loads that could slowly discharge it and periodically check its state of charge.
Package Contents
1 × ELBOTICS 12.8V 6Ah (76.8Wh) LiFePO4 Rechargeable Battery
Warranty
2-Year Warranty
Warranty coverage should be stated according to ELBOTICS' applicable warranty terms and exclusions.
⚠️ Important Listing Corrections Before Publishing
There are a few technical fields in the supplied listing that should be corrected:
| Current Data | Correct / Recommended Data |
|---|---|
| Battery Cell Composition: Lithium Ion | Lithium Iron Phosphate (LiFePO4) |
| Battery Capacity: 6000 Amp Hours | 6Ah / 6000mAh |
| Battery Weight: 605g vs bullet 600g | Use Approx. 600–605g, or weigh the final production unit |
| Model Name: LiFePO4 | LiFePO4 is chemistry, not a model number; use the actual ELBOTICS SKU/model |
| “Smart BMS” | Keep only if the BMS specification supports the intended meaning of “smart”; otherwise use Built-in BMS |
| “Eco-Friendly” | Better to avoid this broad environmental claim unless substantiated |
| 2-Year Warranty | Keep if supported by your actual written warranty policy |
Shipping & Delivery
- Orders are usually delivered within 5–7 working days across India.
- Tracking details are shared after dispatch.
- Please check the package for damage or tampering before accepting delivery.
- Delivery timelines may vary due to location, weather or courier delays.
Warranty Information
ELBOTICS batteries include a minimum 6-month and maximum 5-year warranty, depending on the battery product. Warranty applies against eligible manufacturing defects and is subject to the product warranty terms.
