Elbotics 24V 12Ah LiFePO4 Battery Pack with Smart BMS
Power compatible electrical devices with the Elbotics 24V 12Ah LiFePO4 Battery Pack, a rechargeable lithium iron phosphate battery designed for solar backup systems, electric mobility projects, robotics, automation, and DIY power applications.
Featuring a 25.6V nominal voltage, 12000mAh capacity, and a built-in Smart Battery Management System (BMS), this battery provides 307.2Wh of nominal energy for equipment supporting its electrical specifications.
High-Capacity 24V 12Ah LiFePO4 Battery
The Elbotics battery uses lithium iron phosphate (LFP) chemistry for rechargeable, deep-cycle applications. Its 12Ah capacity makes it suitable for compatible electrical systems where backup power and repeated charging are important.
Built-in Smart BMS Protection
Equipped with a Smart BMS, this rechargeable battery pack is designed to manage battery operation and provide protection according to the installed BMS specifications. The BMS helps monitor and control battery charging and discharging within its rated limits.
Rechargeable Battery for Solar and DIY Projects
The battery is intended for compatible applications including solar backup systems, low-power electrical equipment, robotics, automation projects and electric mobility systems.
Before installation, check your equipment's operating voltage, continuous current, startup current and connector requirements.

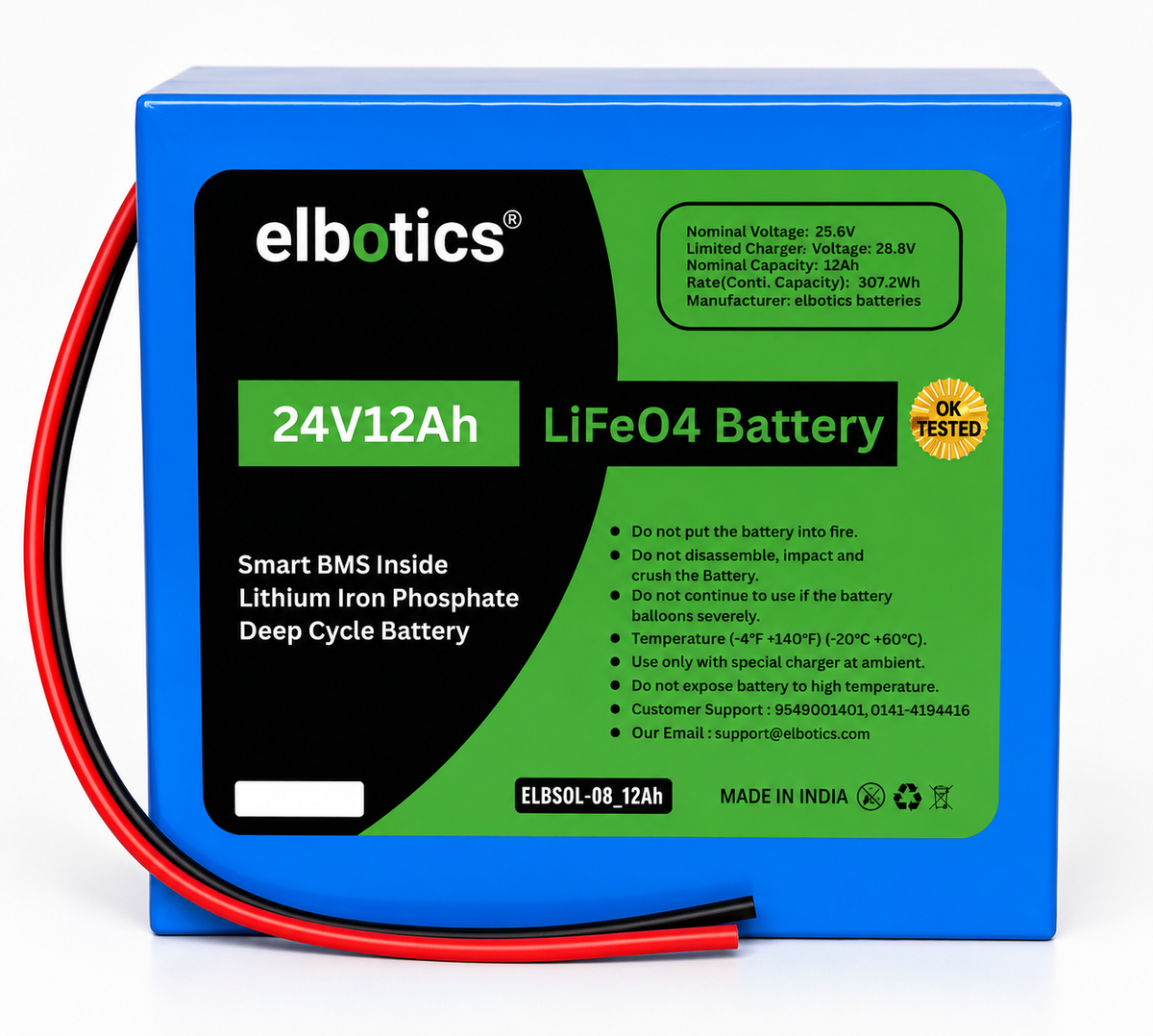

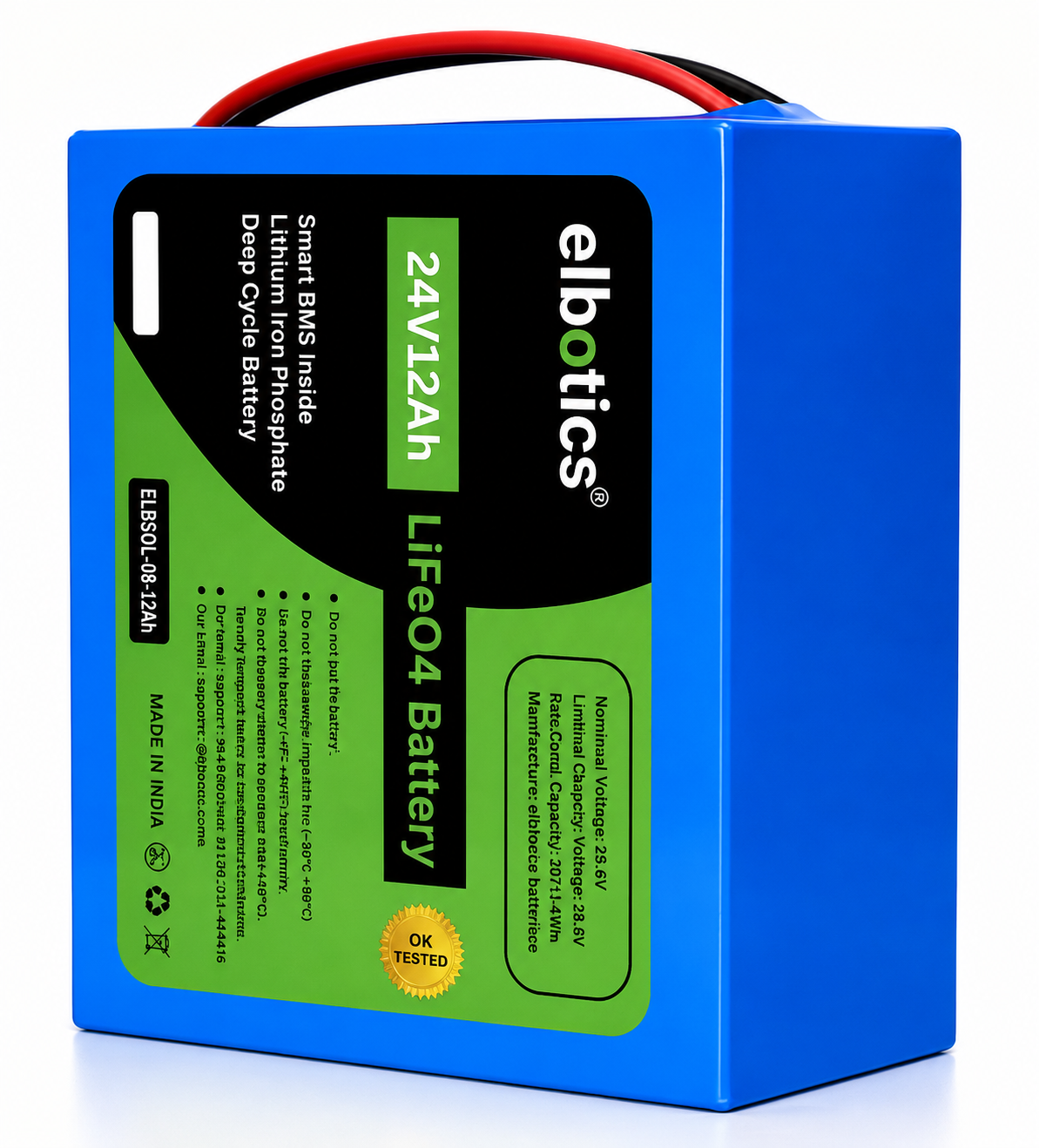

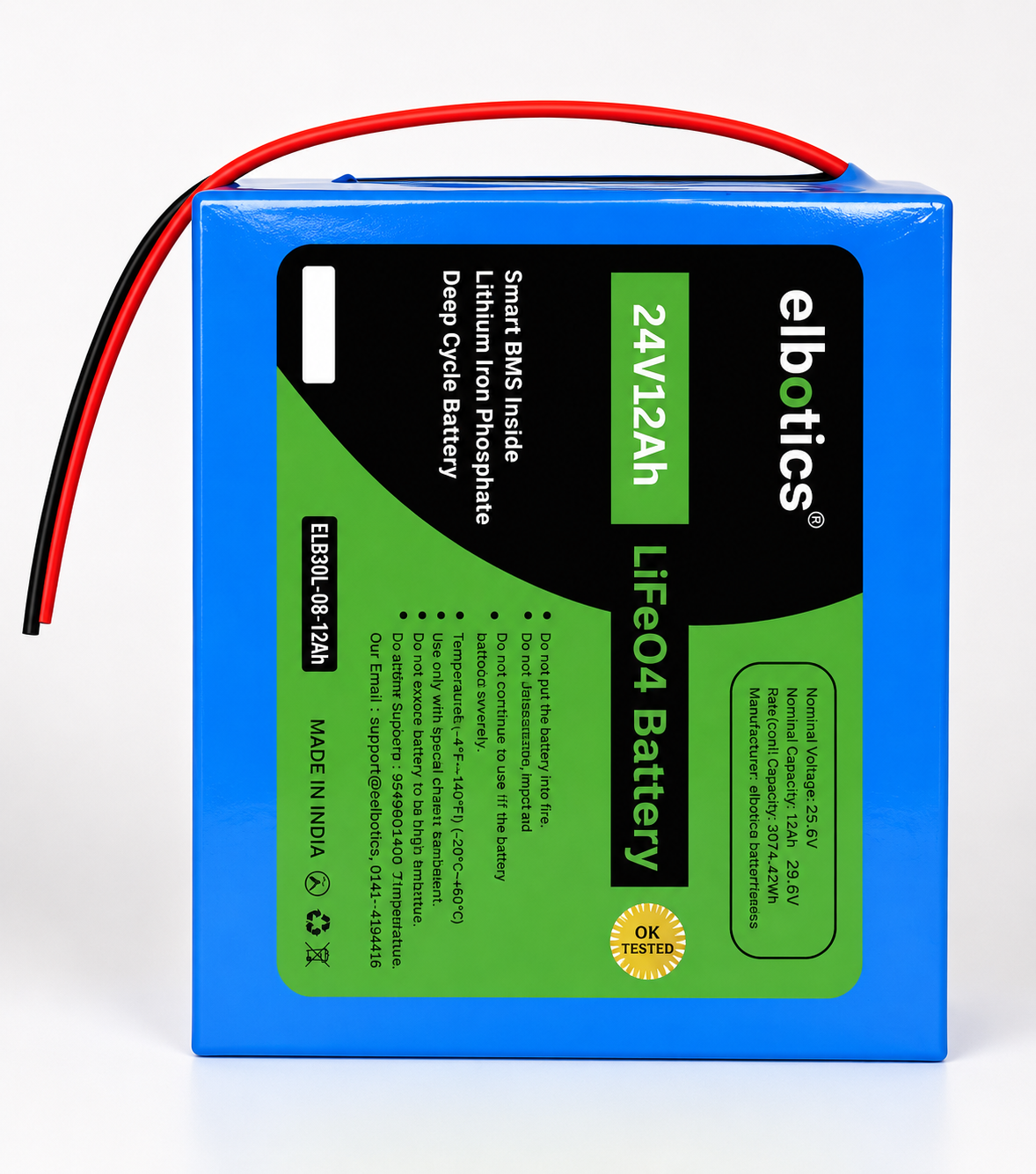

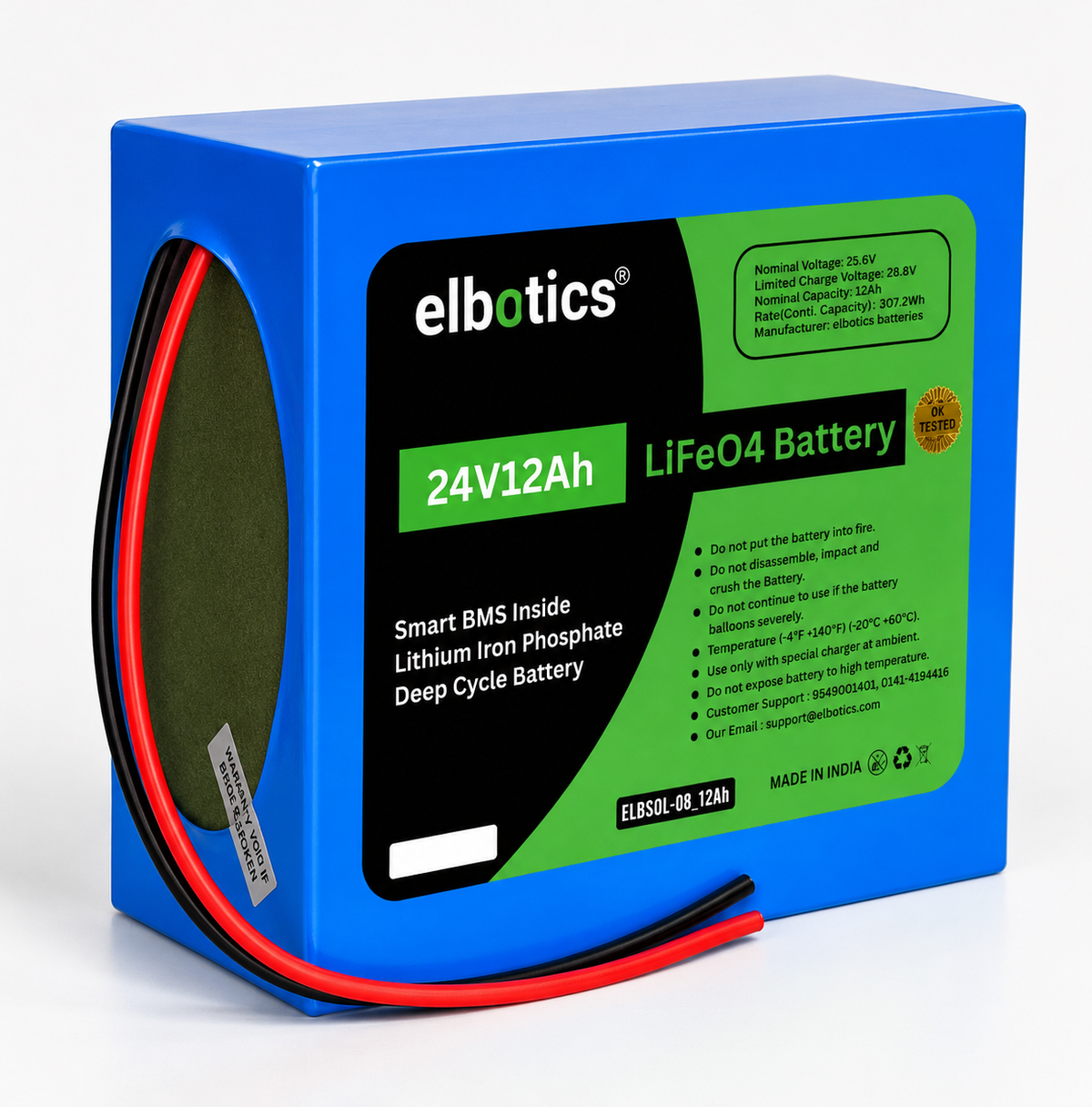

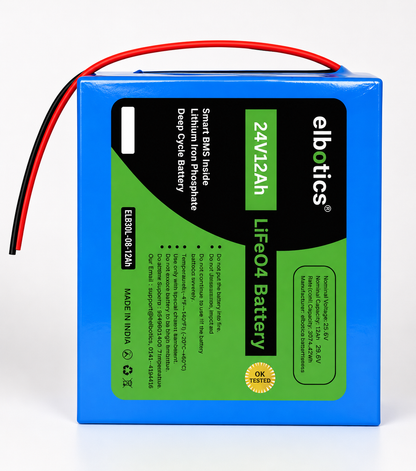

Compact Battery Pack with External Wires
The battery comes in a blue protective casing with red and black power leads. Its supplied product measurements are 16 x 14.2 x 7.5 cm, with a listed weight of approximately 2.6 kg.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Elbotics |
| Battery Chemistry | Lithium Iron Phosphate (LiFePO4) |
| Marketed Voltage | 24V |
| Nominal Voltage | 25.6V |
| Nominal Capacity | 12Ah / 12000mAh |
| Nominal Energy | 307.2Wh |
| Battery Management System | Built-in Smart BMS |
| Battery Type | Rechargeable |
| Model Number | ELBLFPS-082412 |
| Model Name | ELBSOL-08_12Ah |
| Dimensions | 16 x 14.2 x 7.5 cm |
| Weight | Approximately 2.6 kg |
| Connection | Red and Black Power Leads |
| Country of Origin | India, as marked on battery |
| Quantity | 1 Battery Pack |
Battery Compatibility
This 24V-class LiFePO4 battery can be considered for compatible solar systems, electronics projects, robotics and electric mobility equipment. Compatibility depends on your device's voltage range, load requirements, connector and charging specifications.
Charging and Safety Information
Use only a charger confirmed compatible with the actual LiFePO4 battery and its BMS. Verify the maximum charging voltage and charging current from the manufacturer's final specifications before use. Protect the terminals against accidental short circuits and do not charge a damaged battery.
Shipping & Delivery
- Orders are usually delivered within 5–7 working days across India.
- Tracking details are shared after dispatch.
- Please check the package for damage or tampering before accepting delivery.
- Delivery timelines may vary due to location, weather or courier delays.
Warranty Information
ELBOTICS batteries include a minimum 6-month and maximum 5-year warranty, depending on the battery product. Warranty applies against eligible manufacturing defects and is subject to the product warranty terms.
