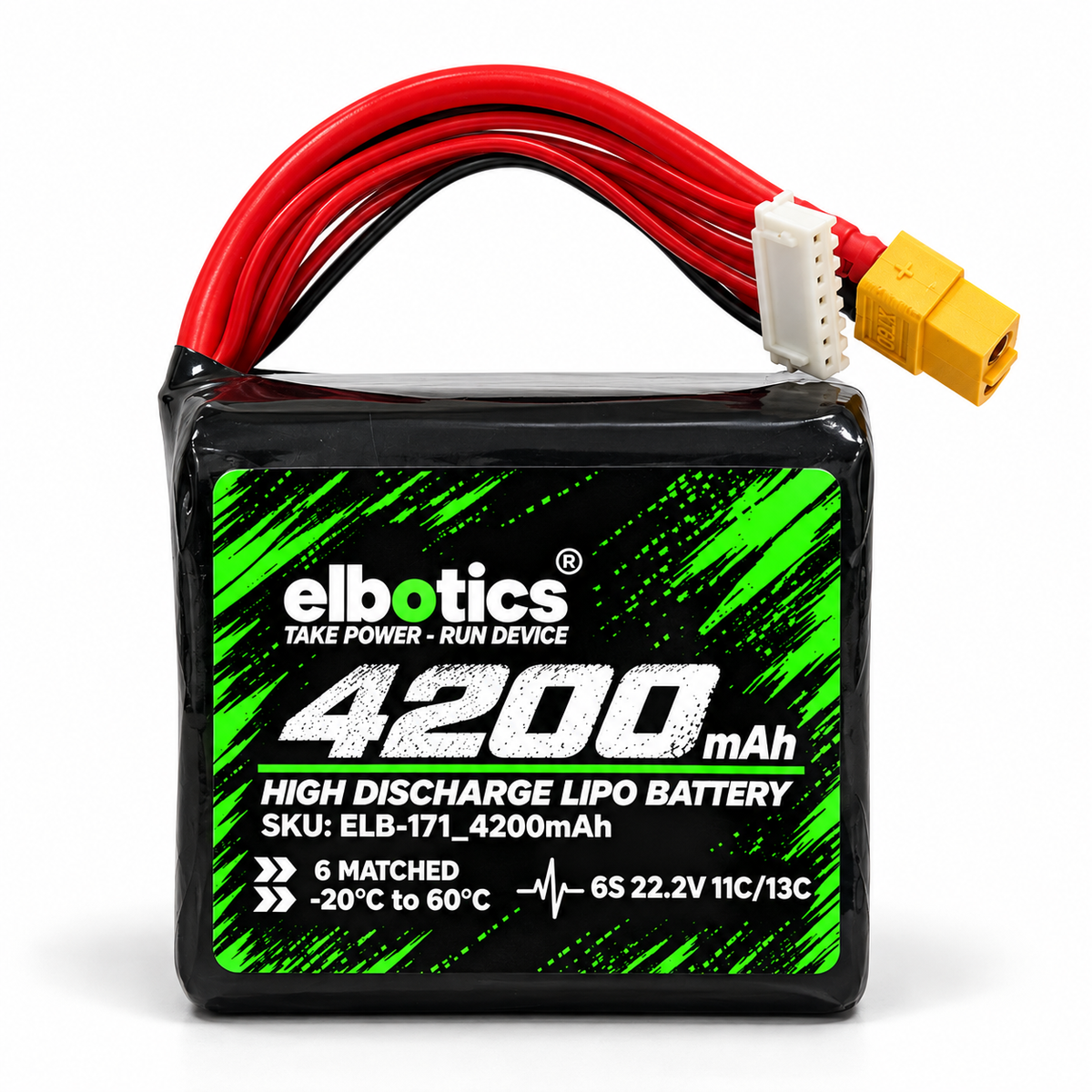

Elbotics P42A 22.2V 4200mAh 6S1P Li-ion Drone Battery
Power compatible FPV quadcopters and small E-VTOL drones with the Elbotics P42A 22.2V 4200mAh 6S1P Li-ion Drone Battery Pack. Built using high-performance Molicel P42A lithium-ion cells, this rechargeable battery combines a 6S configuration, 4200mAh capacity, and 11C discharge rating for compatible drone power systems.

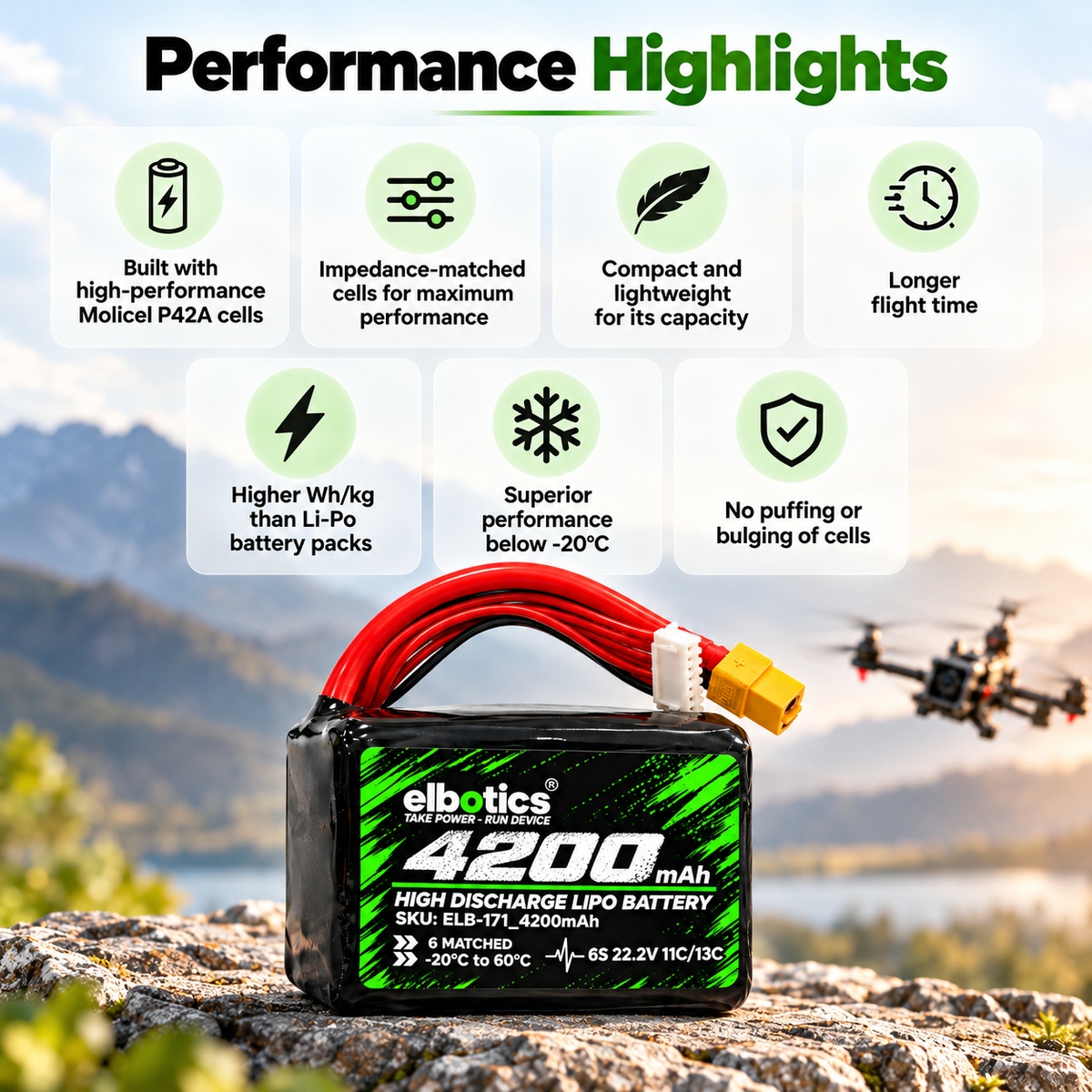

High-Performance Molicel P42A Cells
The battery pack uses Molicel P42A lithium-ion cells with impedance-matched assembly for consistent power delivery. Its 6S1P configuration contains six cells connected in series, providing a nominal voltage of 22.2V.
4200mAh Capacity for FPV Applications
With a 4200mAh capacity, this drone battery is designed for FPV and small E-VTOL applications where battery capacity, operating weight, and electrical compatibility matter. Actual flight duration depends on aircraft configuration, payload, and flight conditions.
11C Discharge Performance
The battery features an 11C discharge rating for compatible drone power requirements. Its nominal energy content is 93.24Wh, calculated from the rated voltage and capacity.

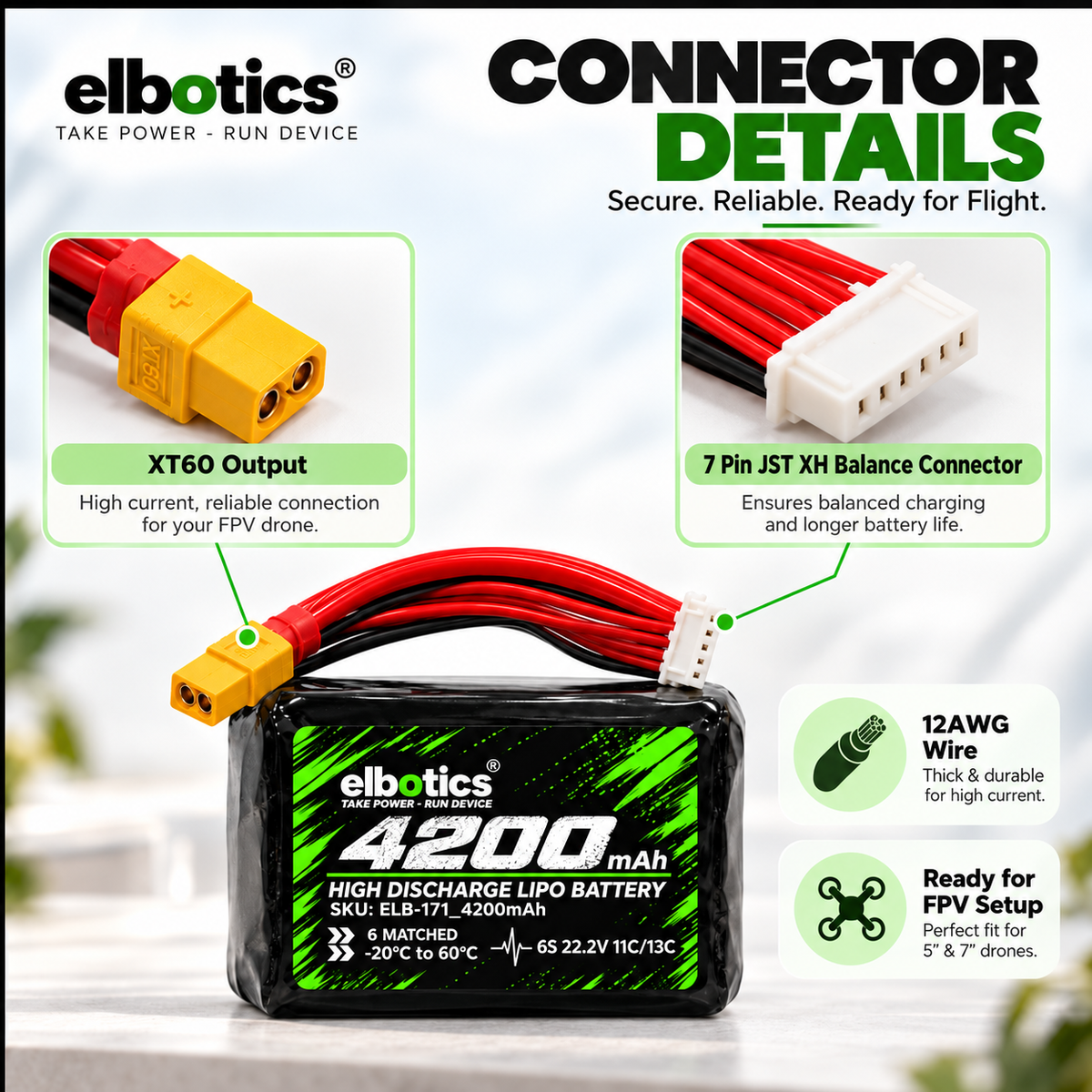

XT60 Power and JST-XH Balance Connection
The illustrated battery features an Amass XT60 discharge connector and a 7-pin JST-XH balance connector. Use a compatible 6S lithium-ion balance charger and verify connector compatibility before charging or installation.

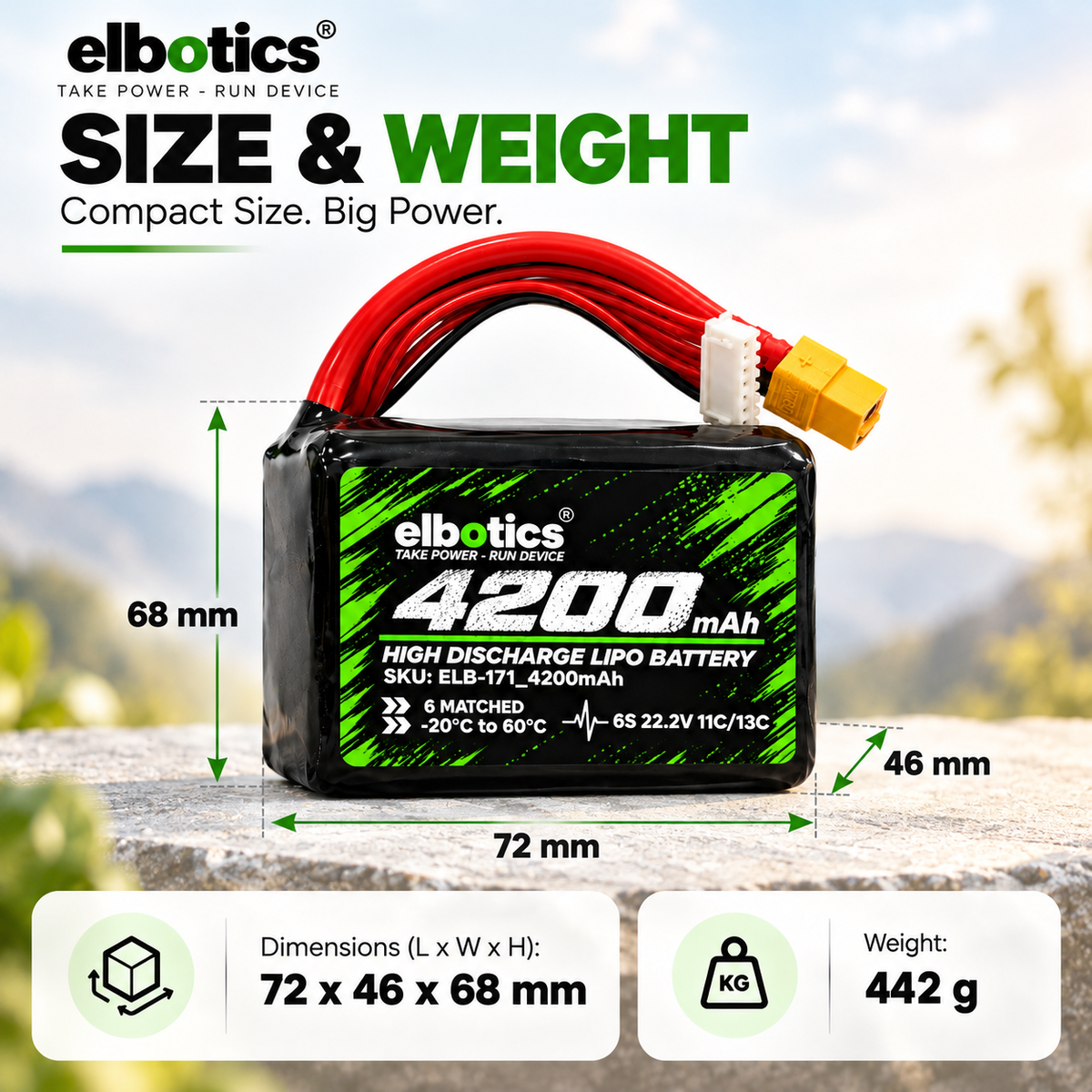

Compact Drone Battery Design
The pack measures approximately 72 x 46 x 68 mm and weighs 442 g according to the supplied product images. These dimensions help buyers check available mounting space and aircraft payload capacity.

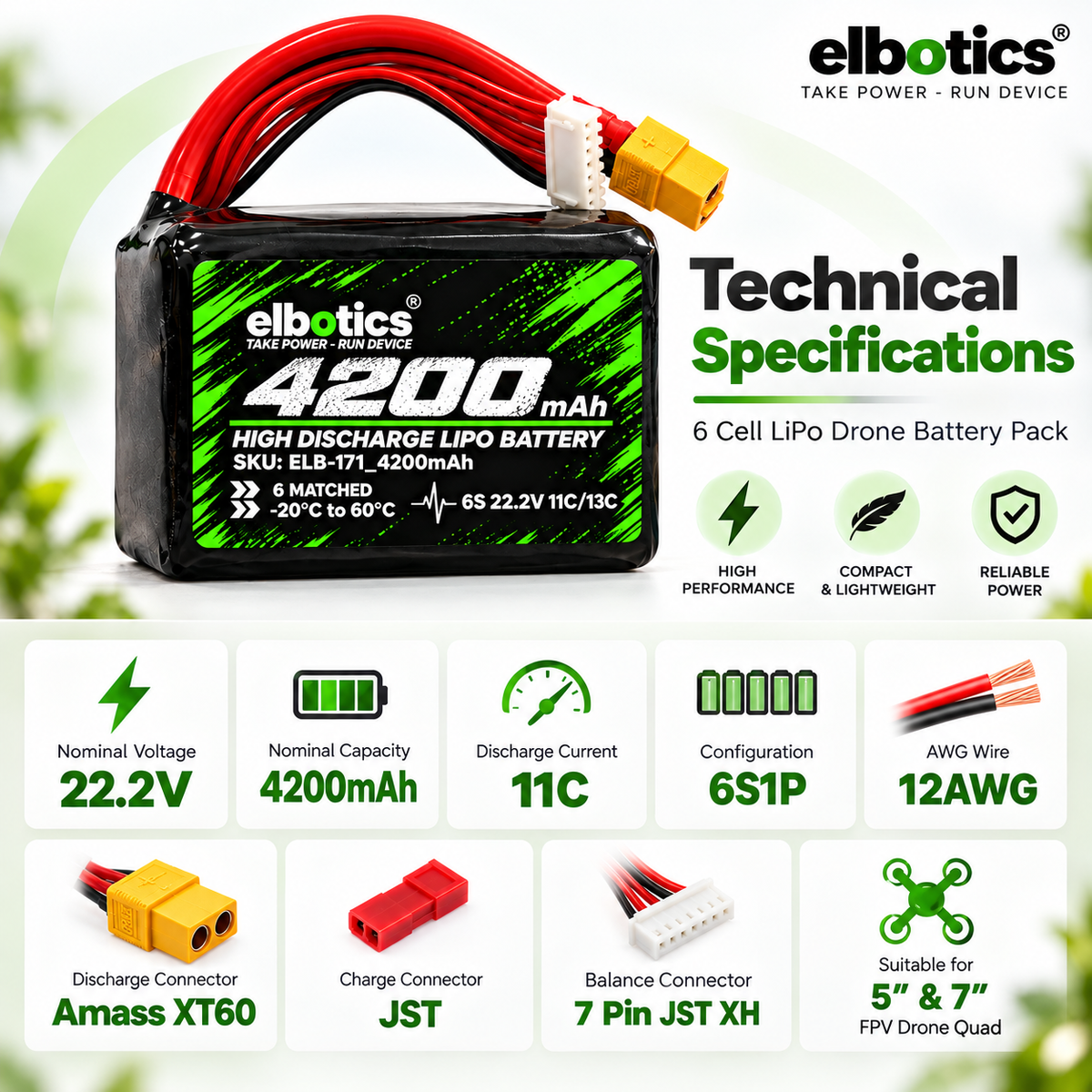

Technical Specifications
| Specification | Details |
|---|---|
| Brand | Elbotics |
| Cell Model | Molicel P42A |
| Battery Type | Lithium-ion |
| Nominal Voltage | 22.2V |
| Capacity | 4200mAh |
| Configuration | 6S1P |
| Discharge Rating | 11C |
| Energy Content | 93.24Wh |
| Maximum Charging Voltage | 25.2V |
| Discharge Connector | Amass XT60 (illustrated variant) |
| Balance Connector | 7-Pin JST-XH |
| Dimensions | 72 x 46 x 68 mm |
| Weight | 442 g |
| SKU | ELB-171_4200mAh |
Compatible Drone Applications
Designed for compatible small E-VTOL drones, FPV quadcopters, and other 6S drone power systems. Before purchase, confirm that your drone supports the battery voltage, discharge requirements, connector type, physical dimensions, and weight.
Important Charging Information
Use suitable lithium-ion balance-charging equipment and follow the battery manufacturer's instructions. Never use an incompatible voltage setting or connector.
Shipping & Delivery
- Orders are usually delivered within 5–7 working days across India.
- Tracking details are shared after dispatch.
- Please check the package for damage or tampering before accepting delivery.
- Delivery timelines may vary due to location, weather or courier delays.
Warranty Information
ELBOTICS batteries include a minimum 6-month and maximum 5-year warranty, depending on the battery product. Warranty applies against eligible manufacturing defects and is subject to the product warranty terms.
