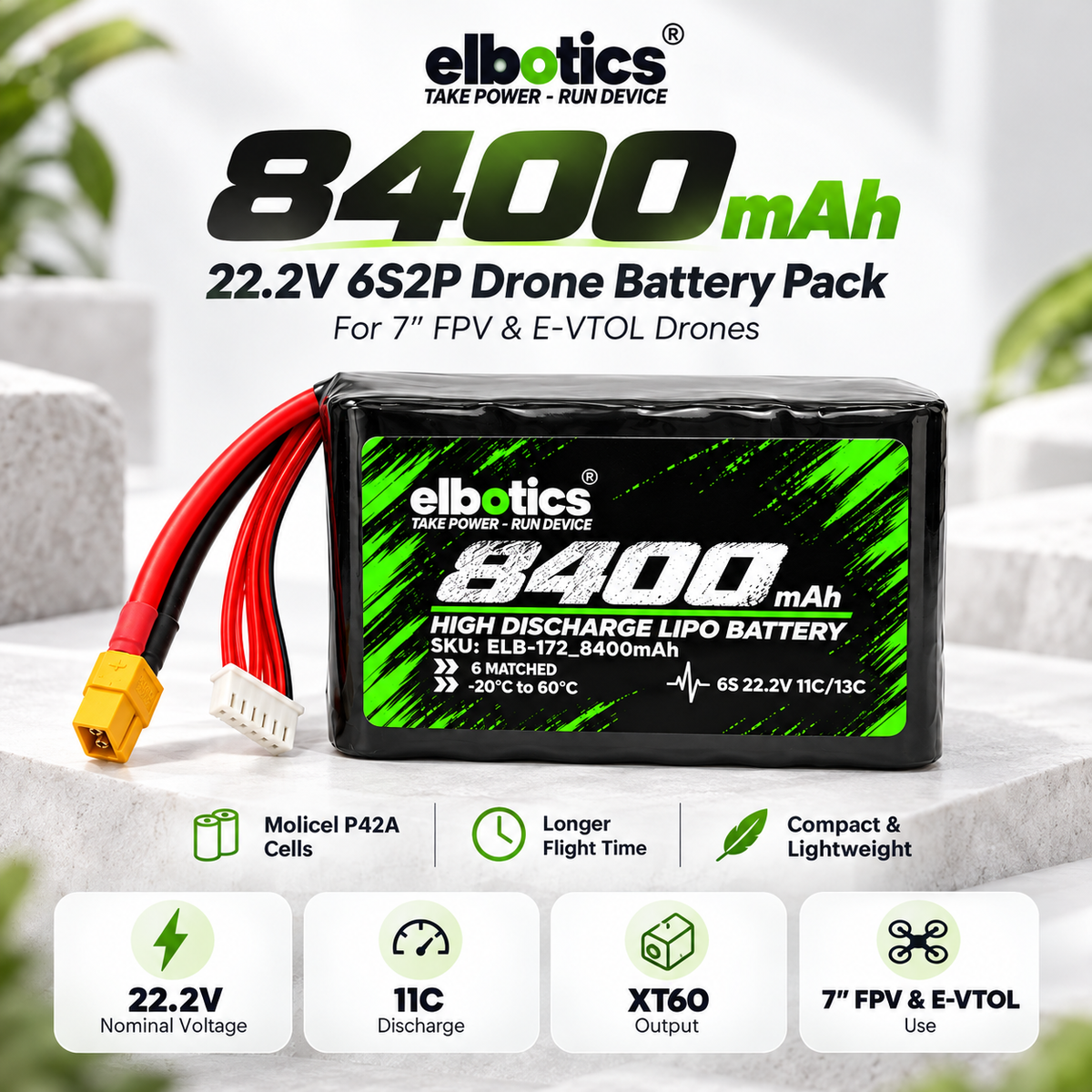

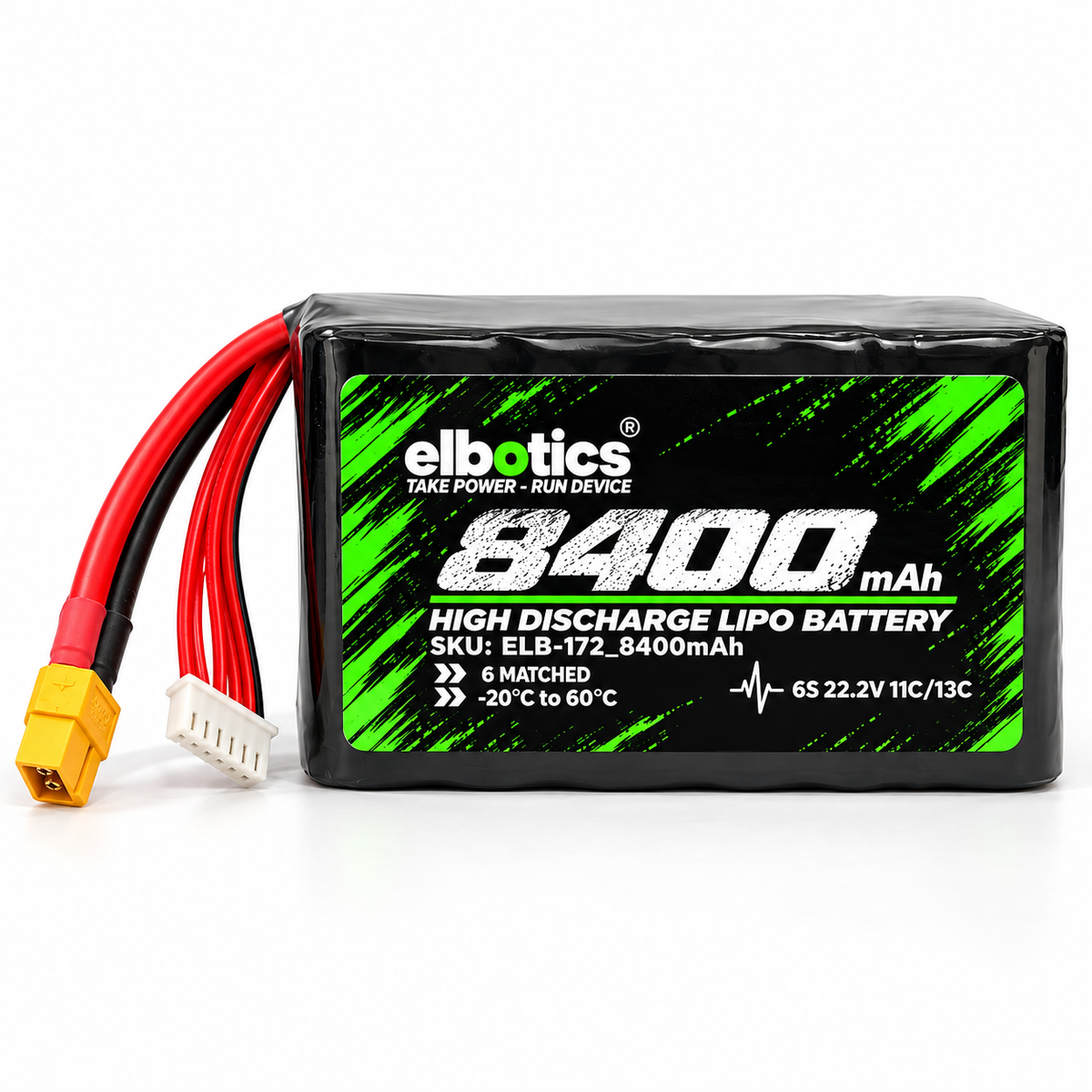

Elbotics P42A 22.2V 8400mAh 6S2P Li-ion Drone Battery Pack
Power your compatible FPV and E-VTOL drone with the Elbotics P42A 22.2V 8400mAh 6S2P Li-ion Drone Battery Pack. Designed for 7-inch FPV quadcopters, small E-VTOL aircraft and long-range drone applications, this rechargeable battery combines high capacity, Molicel P42A cells and an 11C discharge rating for compatible 6S drone power systems.
High-Capacity 8400mAh Battery for Drone Applications
With an 8400mAh nominal capacity and 22.2V output, the battery provides 186.48Wh of nominal energy. Its 6S2P configuration is designed for applications where battery capacity and flight endurance are important. Actual flight time depends on aircraft weight, power consumption, payload and flying conditions.
High-Performance Molicel P42A Cells
The battery pack is assembled using Molicel P42A lithium-ion cells. Impedance-matched cell assembly is intended to support consistent power delivery and dependable performance across compatible drone applications.
11C Discharge Performance
Featuring an 11C continuous discharge rating, this battery is intended for drone systems with compatible current requirements. Its 6S2P configuration contains 12 cells arranged in six series groups, with two cells connected in parallel in each group.

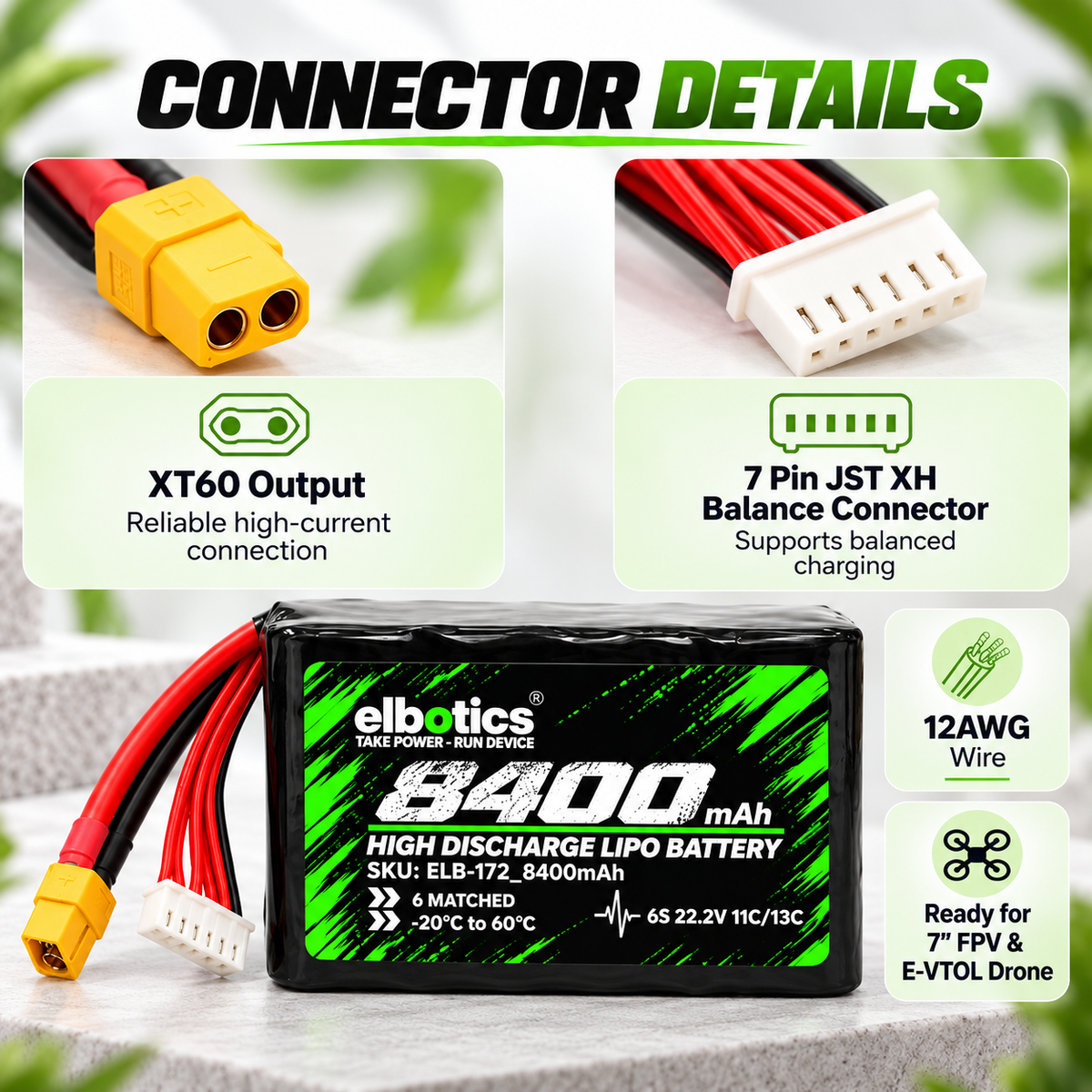

Amass XT60 and JST-XH Connectors
The battery features an Amass XT60 discharge connector and a 7-pin JST-XH balance connector. The XT60 connector is intended for compatible drone power systems, while the balance connector supports use with suitable 6S lithium-ion charging equipment.

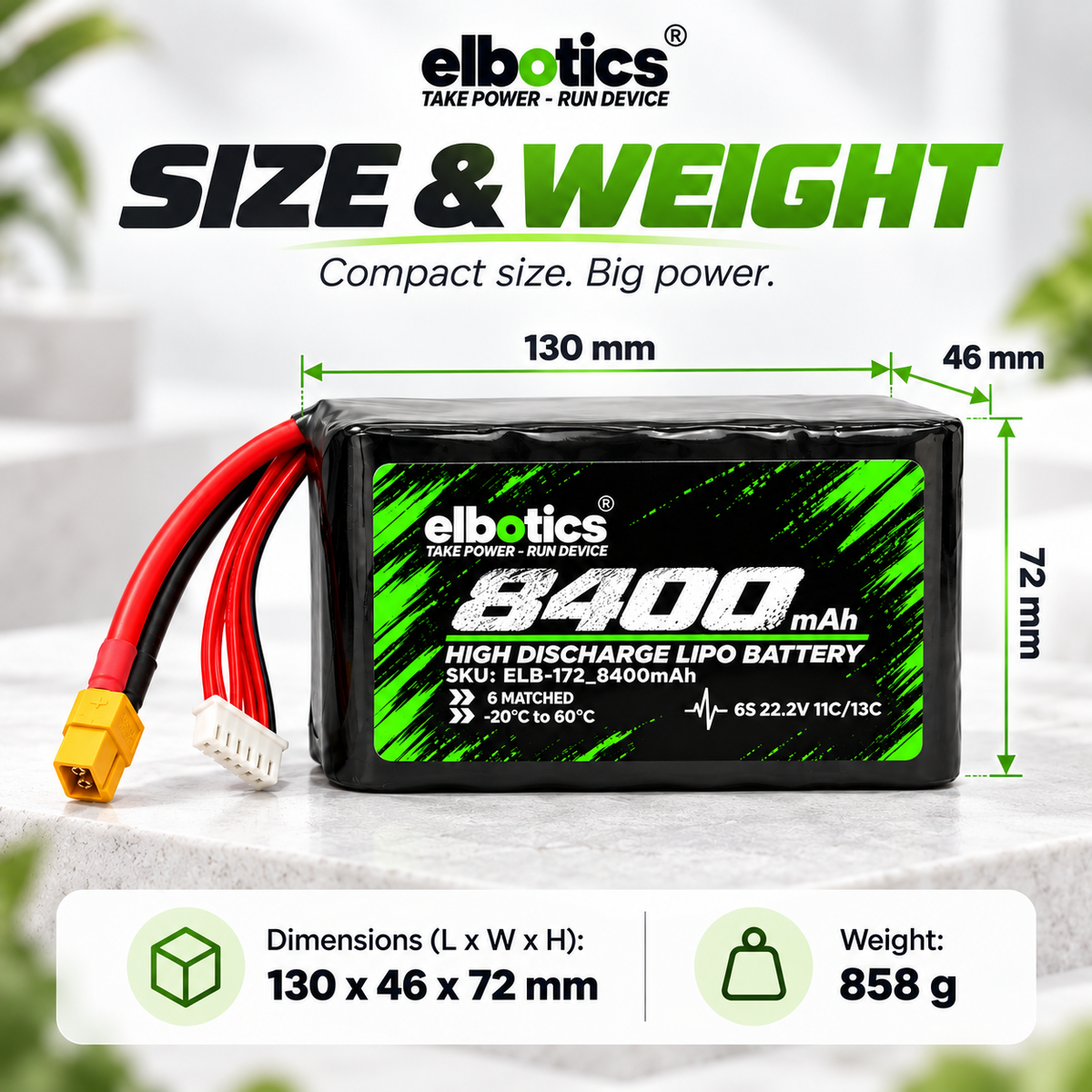

Battery Dimensions and Weight
The pack measures approximately 130 x 46 x 72 mm and weighs 858 g according to the supplied product specifications. Check battery mounting space and aircraft weight capacity before installation.

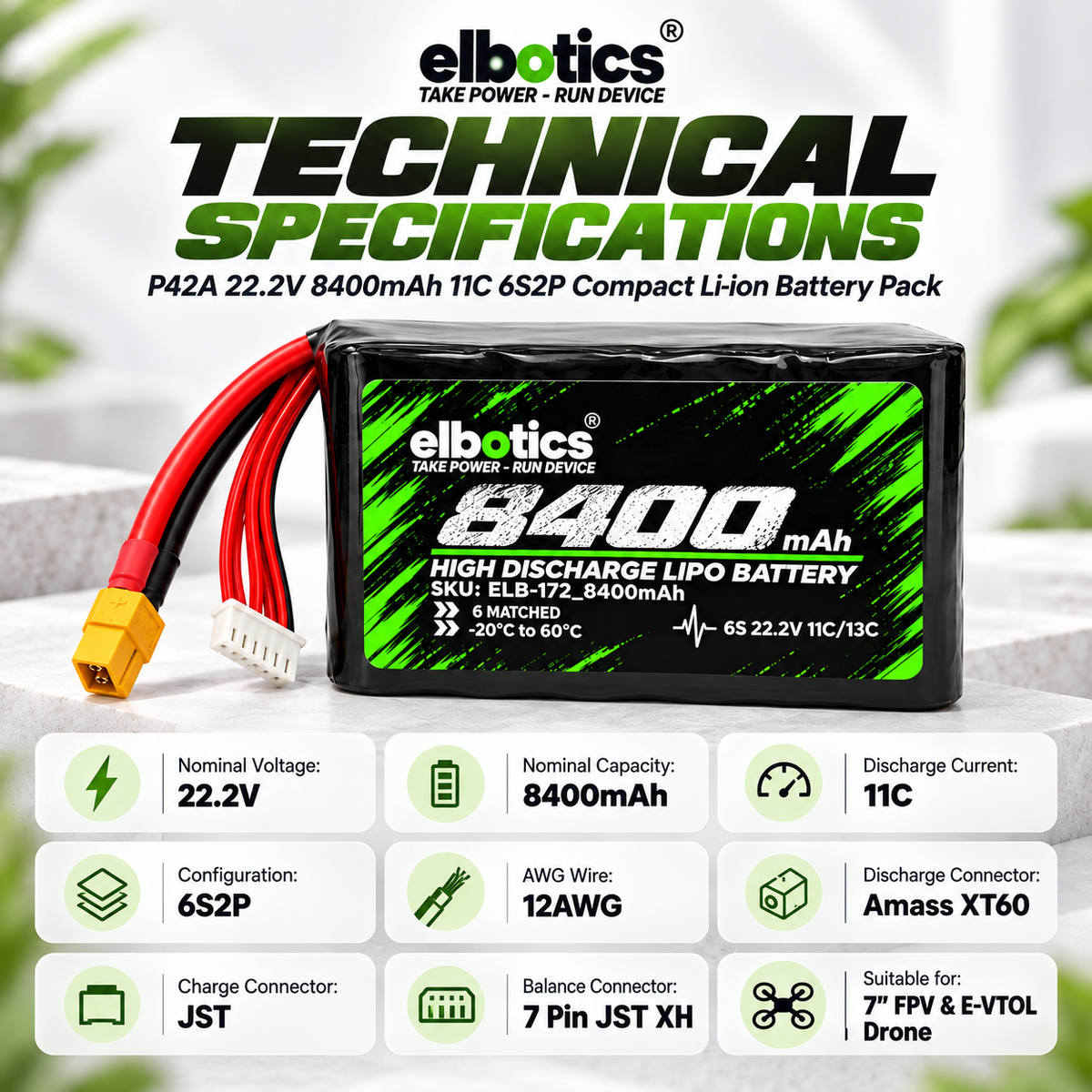

Technical Specifications
| Specification | Details |
|---|---|
| Brand | Elbotics |
| Cell Model | Molicel P42A |
| Battery Chemistry | Lithium-ion |
| Nominal Voltage | 22.2V |
| Nominal Capacity | 8400mAh |
| Battery Configuration | 6S2P |
| Discharge Rating | 11C |
| Nominal Energy | 186.48Wh |
| Maximum Charging Voltage | 25.2V |
| Discharge Connector | Amass XT60 |
| Balance Connector | 7-Pin JST-XH |
| Dimensions | 130 x 46 x 72 mm |
| Weight | Approximately 858 g |
| SKU | ELB-172_8400mAh |
| Intended Applications | 7-inch FPV and Small E-VTOL Drones |

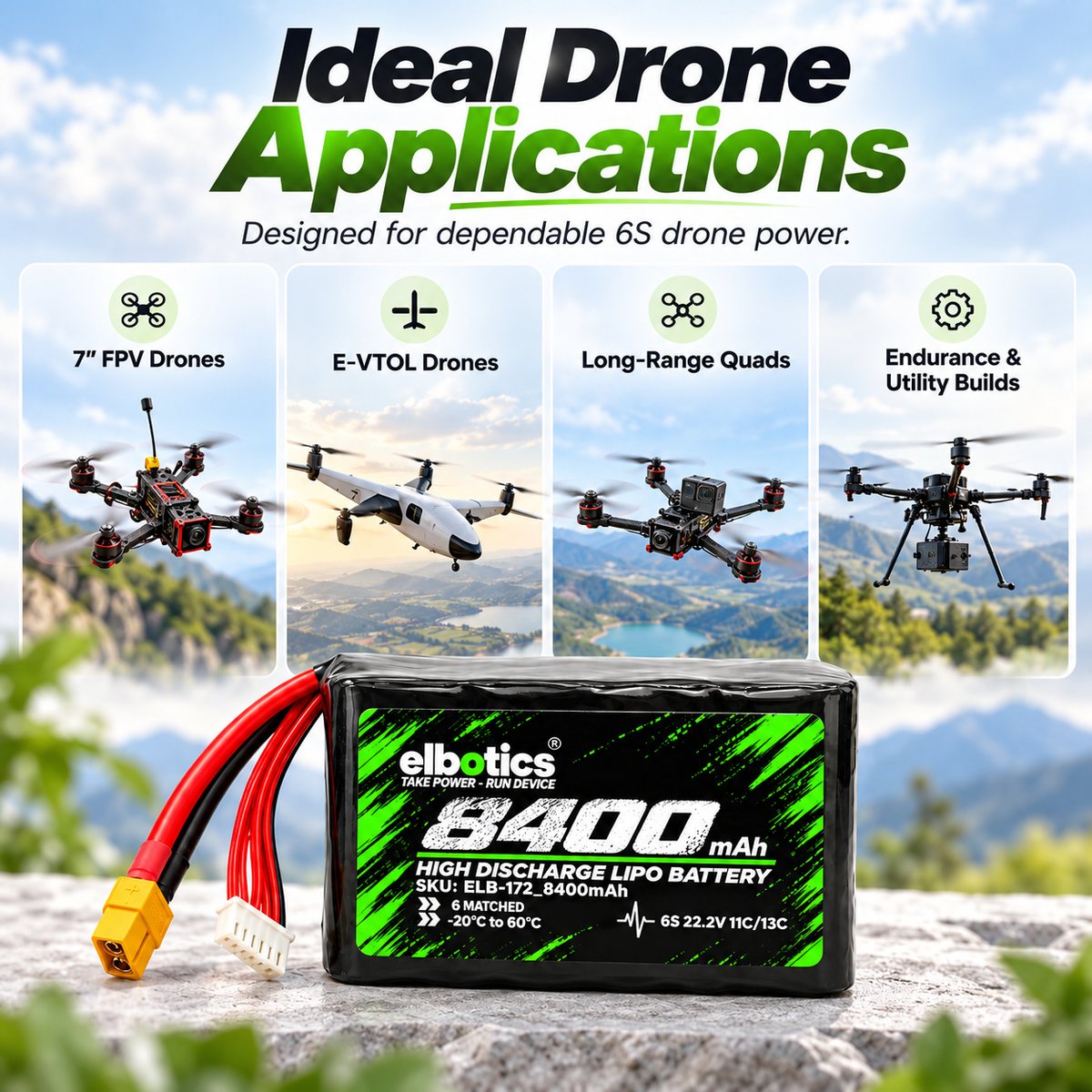

Drone Compatibility
Designed for compatible 7-inch FPV drones, small E-VTOL aircraft, quadcopters, and long-range drone builds that support 6S lithium-ion batteries. Compatibility depends on voltage, discharge requirements, XT60 connection, battery mounting space, and aircraft weight capacity.
Charging and Safety Information
Use compatible 6S lithium-ion balance-charging equipment. The maximum specified charging voltage is 25.2V. Confirm all charging parameters against the battery manufacturer's documentation. Do not use damaged batteries or incompatible charging equipment.
Shipping & Delivery
- Orders are usually delivered within 5–7 working days across India.
- Tracking details are shared after dispatch.
- Please check the package for damage or tampering before accepting delivery.
- Delivery timelines may vary due to location, weather or courier delays.
Warranty Information
ELBOTICS batteries include a minimum 6-month and maximum 5-year warranty, depending on the battery product. Warranty applies against eligible manufacturing defects and is subject to the product warranty terms.
